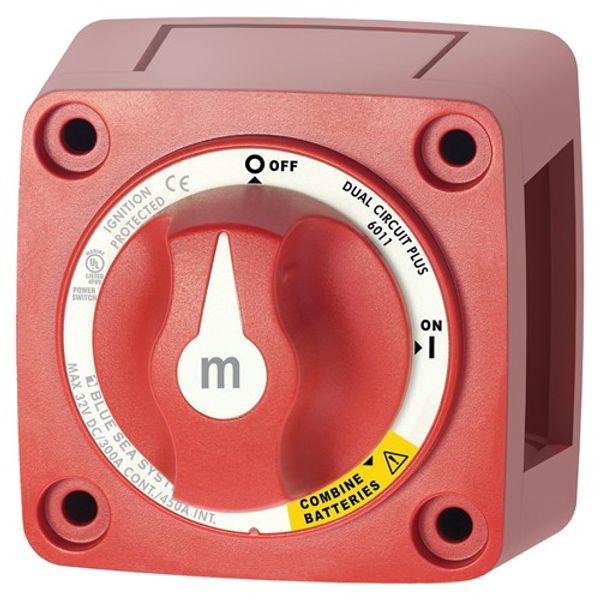

Blue Sea M Series Dual Plus Battery Switch

M-SERIES BATTERY SWITCHES

300 Ampere continuous rating for outboards and small gasoline or diesel engines.

Tin-plated copper studs for maximum conductivity and corrosion resistance

Studs accept 3/8″ (M10) ring terminals

One-piece terminal stud design never loosens over time

7/8″ (22.22mm) stud length accepts multiple cable terminals

Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction

Case design allows surface, rear, or front panel mounting options Regulatory

CE marked, ISO 8846

UL Listed – UL 1107 electric power switches

Meets ABYC requirements

Meets UL1500 and SAE J1171 external ignition protection requirements

IP66 protects against powerful water jets

Paralleling Link BUS 8-29159
